Kraven Manor

Unreal Development Kit
Kraven Manor is a first-person, survival-horror game set in a dark and haunted manor.

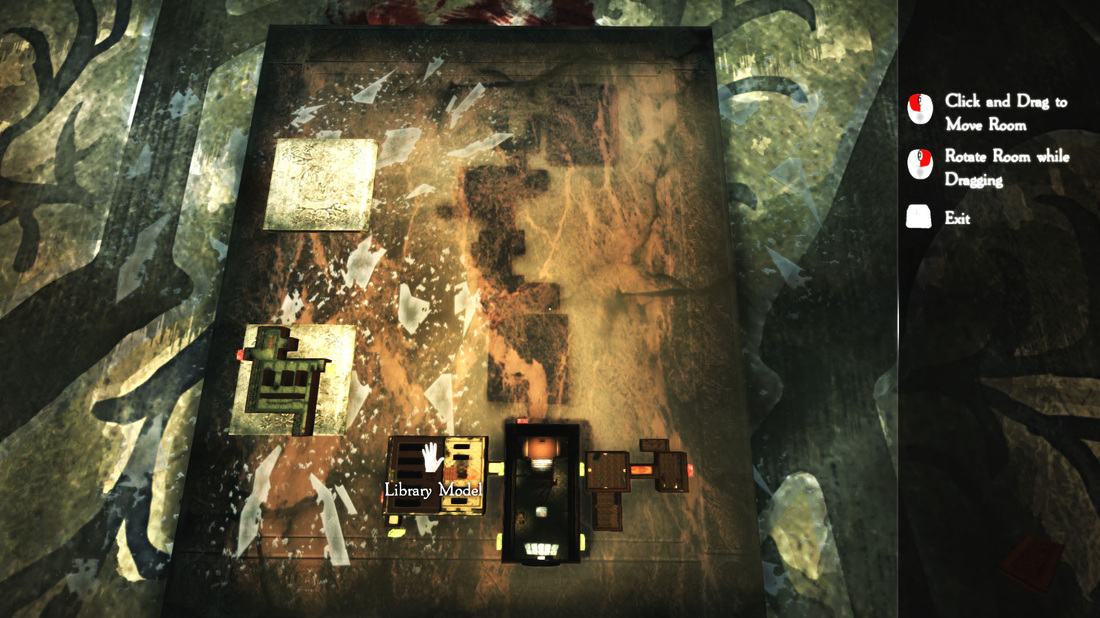

The player has the power to dynamically alter the layout by interacting with a miniature scale model of the manor, located in its extravagant entryway.

Kraven Manor
Kraven Manor

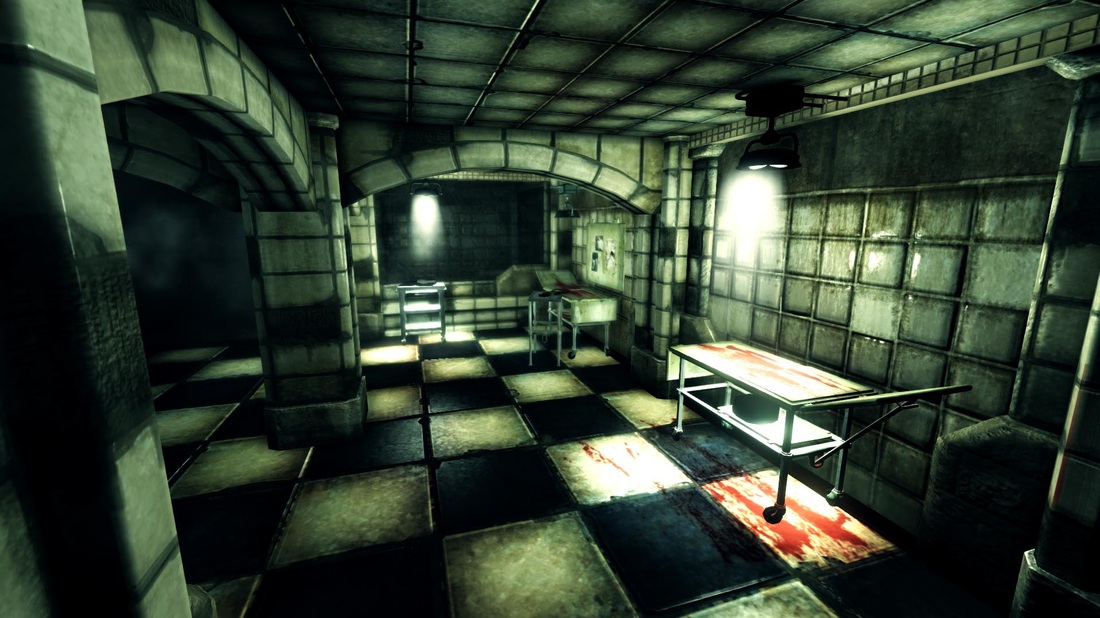

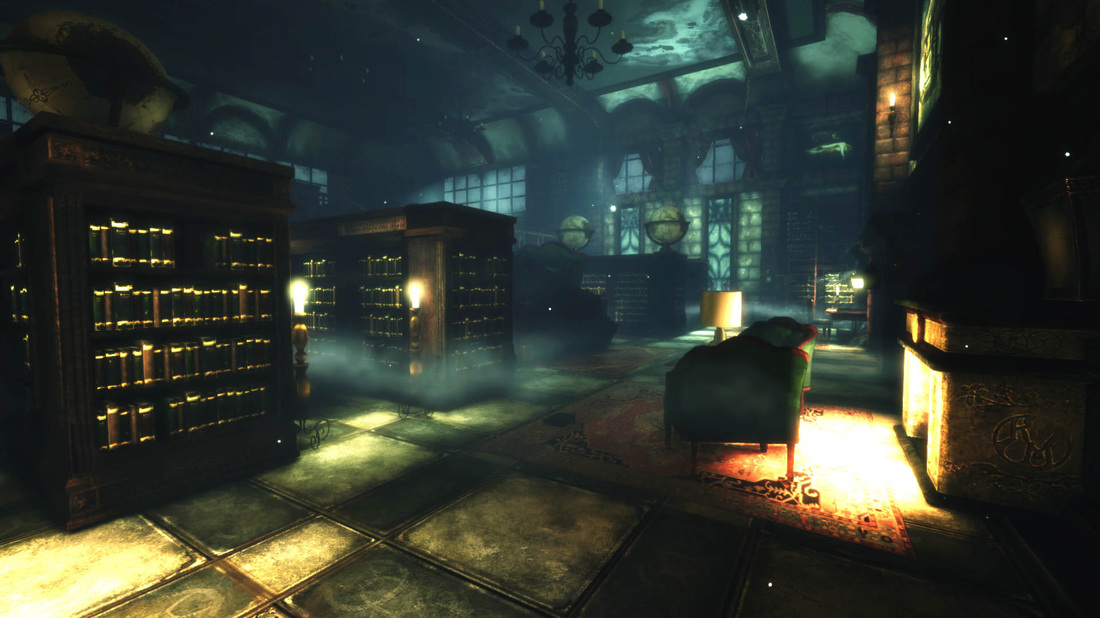

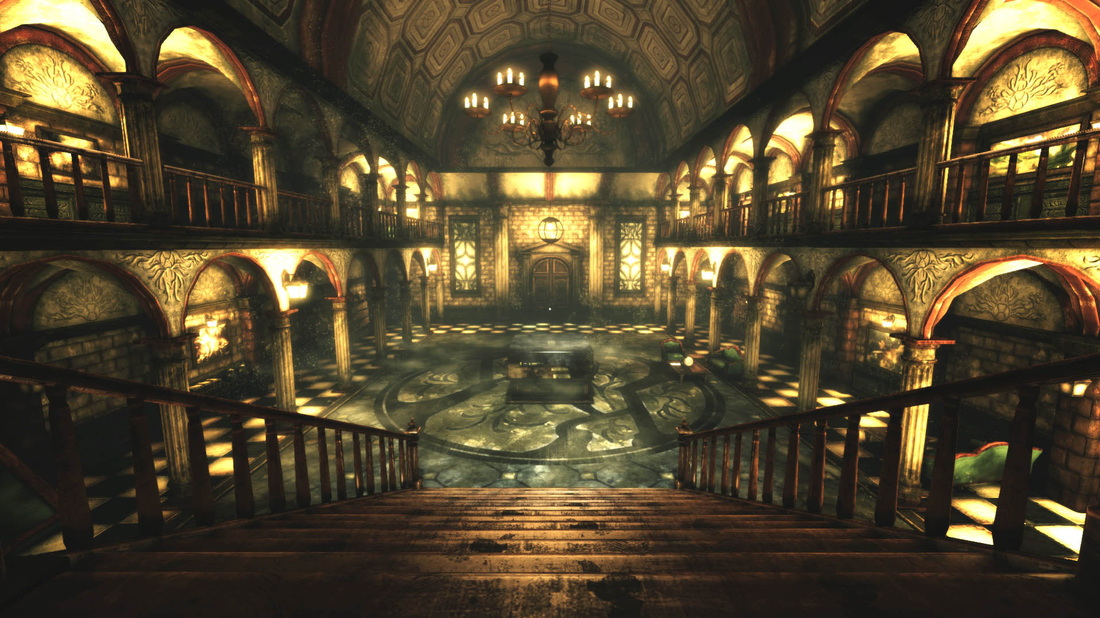

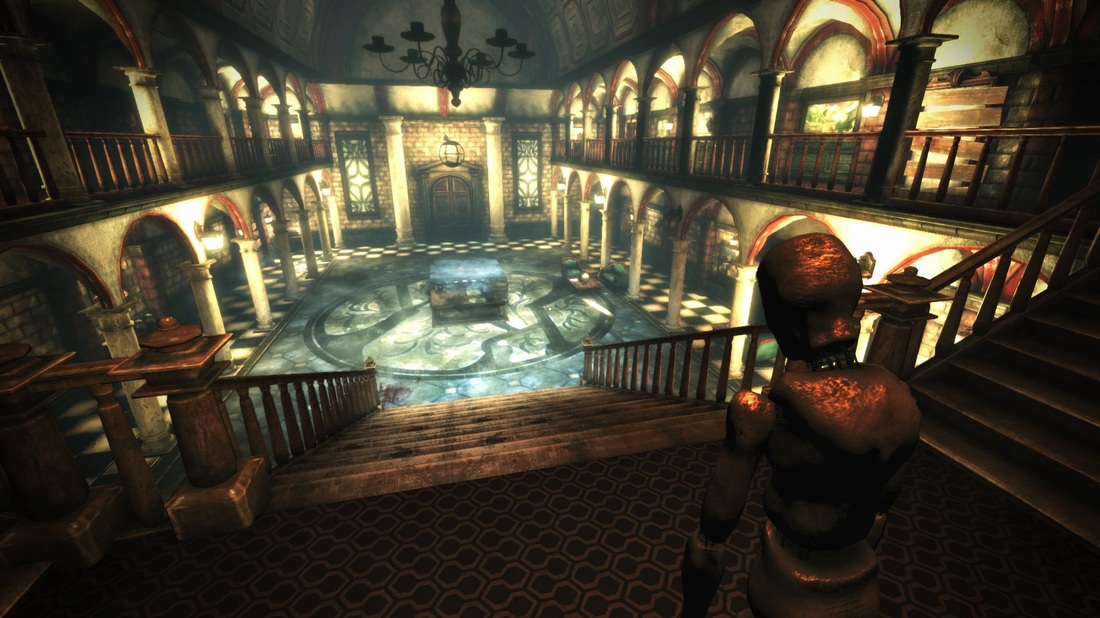

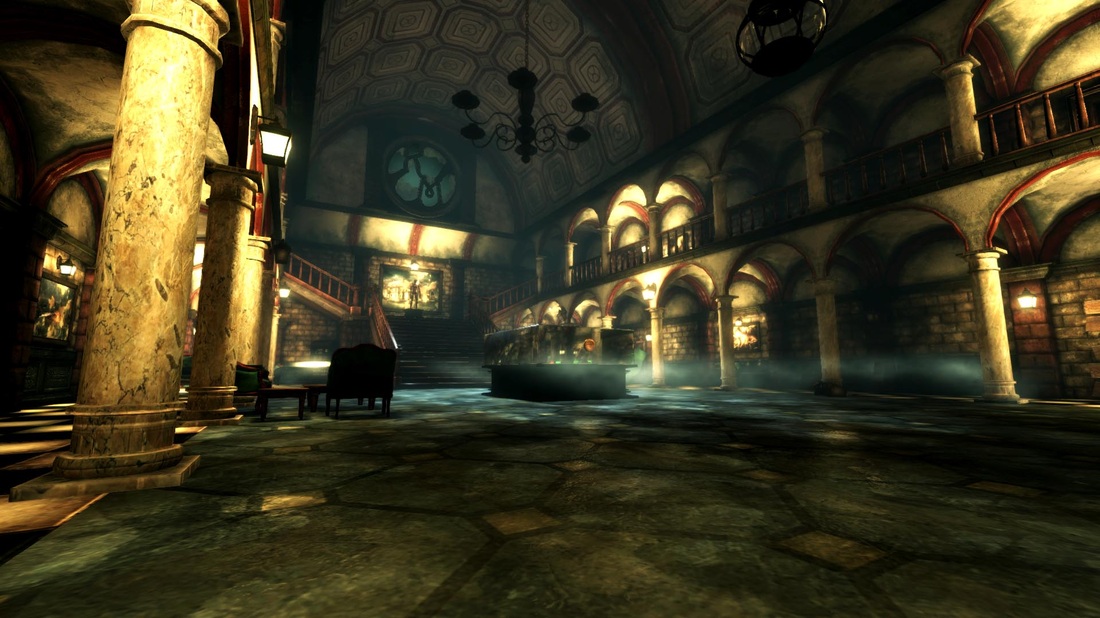

Screenshots

Reviews

Postmortem

What Went Well

  • I succeeded in iterating several times on gameplay components – allowing for polish.
  • I stayed ahead of designers in terms of implementing design tools and game components to a usable state before the designers actually needed them.
  • My estimated schedule for components I was responsible for implementing was less than actual development time – allowing for more iteration/polish.

What Went Wrong

  • My tests were not elaborate enough to match the use of some my components in the actual game.
  • For some tough bugs, I initially panicked and resorted to trial and error bug fixing instead of taking the time to critically think about the cause of the problem – this ultimately wasted more time than simply doing the latter first.
  • In some cases, I failed to properly document the implementation and use of components and tools I made which led to spending more time than necessary educating team members on their use.

What I Learned

  • Spend the extra time to create elaborate tests that closely match the final gameplay early on. Better yet, involve designers and motivate them to create a whitebox level that tests the core gameplay components very early.
  • Document tools and components right away and submit to users for feedback. As soon as first pass implemented, schedule time to walk users through implementation and how to use. This also serves as a great opportunity to gather feedback to iterate.
  • Any time faced with a tough bug, step back and take the time to properly understand the problem and isolate the root cause.

Project Contribution

  • Collaborated with designers to specify game-play systems.
  • Implemented Artificial Intelligence systems.
  • Implemented enemy animation systems.
  • Implemented core shifting room mechanic.
  • Implemented interactive objects and possessed objects systems.
  • Created tools for designers (Kismet actions and events).

Source Code

Below is the source code for an AI Controller: Fred, the code-name for one of the enemy statue types.

  • Archetyped the class to expose all public data to designers.
  • UDK’s Navigation Mesh used for path finding.
  • Worked with designers to generate good nav-meshes.
  • HandleBeingStuck() implemented to nudge the AI pawn to a better location when stuck.

/************************************************************************************************
 * Copyright (c) 2012-2013 The Guildhall at Southern Methodist University. All Rights Reserved.
 * ----------------------------------------------------------------------------------------------
 * Kraven Manor
 * Demon Wagon Studios, Cohort 18
 *
 * @Author:     Warsam Osman
 *
 * ----------------------------------------------------------------------------------------------
 * @Updated:    06/10/2013
 * @File:       KM_Fred.uc
 * @Brief:      Fred - codename for statue that chases player and launches ghosts at her.
 ************************************************************************************************/

class KM_Fred extends KM_AIController
    placeable; // placeable only so LDs can create archetypes

//////////////////////////////////////////////////////////////////////////////////////////////////
// Public Class Variables
//////////////////////////////////////////////////////////////////////////////////////////////////

var(FredController) public float        AttackRange;
var(FredController) public float        DamageToPlayerPerTick;
var(FredController) public float        PlayerDetectionRadius;
var(FredController) public float        AttackCoolDownSeconds;
var(FredController) public int          AttackAfterTeleportCoolDown;
var(FredController) public bool         IsFrozen;
var(FredController) public int          TriggerTeleportAfterNumLooks;
var(FredController) public float        DeathDelay;
var(Ghost) public float                 SecondsToWaitBeforeFiring;
var(Ghost) public int                   GhostDamageToPlayerOnTouch;
var(Ghost) public float                 SecondsToFlickerFlashLight;
var(Ghost) public float                 SecondsToKeepFlashLightOff;
var(Ghost) public float                 PositionOffsetAbovePlayerToSpawn;
var(Ghost) public float                 WindUpTime;
var(Ghost) public float                 GhostSpeed;
var(Ghost) public float                 GhostMaxSpeed;
var(Ghost) public float                 GhostAccelerationRate;

//////////////////////////////////////////////////////////////////////////////////////////////////
// Private Class Variables
//////////////////////////////////////////////////////////////////////////////////////////////////

var private KM_GhostProjectile          m_spawnedGhostProjectile;
var private float                       m_attackRangeSq;
var private Vector                      m_locationLastFrame;
var private Vector                      m_nextDestination;
var private ParticleSystem              m_CustomFX, m_FxTakeDamage;
var private ParticleSystemComponent     m_PSC,m_PSCTakeDemage, m_windupEmitter;
var private bool                        m_bStatueEnabled;
var private bool                        m_bGhostInFlight;
var private bool                        m_bDebug;
var private bool                        m_bReadyToAttack;
var private bool                        m_bReadyToShootGhost;
var private float                       m_timeToSpendRecoveringWhileStuck;
var private bool                        m_bStuck;
var private float                       m_stuckCheckDistance;
var private float                       m_distanceToTeleportSq;

//////////////////////////////////////////////////////////////////////////////////////////////////
// Events / Functions
//////////////////////////////////////////////////////////////////////////////////////////////////

event PostBeginPlay()
{
    super.PostBeginPlay();

    m_attackRangeSq = AttackRange * AttackRange;
}

function bool IsWithinAttackRangeOfEnemy()
{
    if( Pawn == None ) return false;
    return VSizeSq( GetEnemy().Location - Pawn.Location ) < m_attackRangeSq;
}


//Fast trace pawn collision extent to check for clear path to destination
function bool CanReachDestination( Vector checkDestination )
{
    local Vector pathCollisionExtent;

    if( Pawn == None ) return false;

    GetPawnCollisionExtent( pathCollisionExtent );

    //Check if line of sight
    if( !FastTrace( checkDestination, Pawn.Location, pathCollisionExtent ) )
        return false;

    return true;
}

function KM_Pawn GetEnemyWithinDetectRadius()
{
    local KM_Pawn playerPawn;

    if( Pawn == None ) return None;

    foreach OverlappingActors( class'KM_Pawn', playerPawn, PlayerDetectionRadius, Pawn.Location )
    {
        return playerPawn;
    }
    return None;
}

// Create the pawn collision extent
function GetPawnCollisionExtent( out Vector pawnCollisionExtent )
{
    if( Pawn == None ) return;
    pawnCollisionExtent.X = Pawn.GetCollisionRadius();
    pawnCollisionExtent.Y = Pawn.GetCollisionRadius();
    pawnCollisionExtent.Z = Pawn.GetCollisionHeight();
}

//Globes are ignored as design advocates for Fred to shoot at a globe if player is on other side of it.
//Note: it is intended the globe to be hit even if there is obstruction between the globe and player
function bool HasLineOfSightToPlayerIgnoringGlobes( optional Vector Extent = vect( 30.0, 30.0, 30.0 ) )
{
    local Actor                     HitActor;
    local Vector                    HitLocation, HitNormal;
    local Vector                    StartShot, EndShot;
    local TraceHitInfo              HitInfo;

    // Perform a trace to find what the player is looking at
    StartShot       = Pawn.Location;
    StartShot.Z     += PositionOffsetAbovePlayerToSpawn;
    EndShot         = GetEnemy().Location;
    HitActor        = Trace(HitLocation, HitNormal, EndShot, StartShot, True, Extent, HitInfo, TRACEFLAG_Bullet );

    if( m_bDebug )
    {
        DrawDebugLine(Pawn.Location,HitActor.Location,0,255,0,true);
        DrawDebugSphere(HitActor.Location,16,20,0,255,0,true);
    }

    if( HitActor == Self )
        return false;
    else if( HitActor.IsA( 'KM_Pawn') )
        return true;
    else if( HitActor.IsA( 'KM_Globe') )
        return true;

    return false;
}

//Swing open unlocked doors when chasing the player.
function DetectAndAttemptOpenDoor( Vector checkDestination )
{
    local Actor HitActor;
    local Vector HitLocation, HitNormal, pathCollisionExtent, StatueFacingTarget;
    local Vector endLoc;
    local KM_InterpDoor theDoor;
    local KM_Door DoorOwner;

    if( Pawn == None ) return;

    GetPawnCollisionExtent( pathCollisionExtent );

    StatueFacingTarget = Normal( checkDestination - Pawn.Location  );
    endLoc =  Pawn.Location + ( StatueFacingTarget * ( Pawn.GetCollisionRadius() + 5.0 ) ); //Magic so trace hits when adjacent to door.

    foreach TraceActors(class'Actor', HitActor, HitLocation, HitNormal,
        endLoc, Pawn.Location, pathCollisionExtent)
    {
        theDoor = KM_InterpDoor(HitActor);
        if( theDoor == None ) continue;

        DoorOwner = theDoor.DoorFrame;
        if( DoorOwner == None ) continue;

        if( !DoorOwner.IsDoorLocked() && !DoorOwner.IsDoorOpen() )
            theDoor.DoorFrame.SetIsDoorOpen( true,, Pawn );
    }

}

//Stops pawn moving towards final destination and stops it moving
function StopMovement()
{
    if( Pawn == None ) return;
    Pawn.Acceleration = vect(0,0,0);
}

function SetFrozen( bool frozen )
{
    IsFrozen = frozen;
}

function SetFireGhostReady()
{
    m_bReadyToShootGhost = true;
}

function AttemptFireGhostAtPlayer()
{
    local ParticleSystem windupFx;
    local Vector        SpawnPosition;
    if( m_bGhostInFlight || !m_bReadyToShootGhost ) return;

    if( !IsInFlashLightBeam() ) return;

    //Check if there is clear LOS to player
    if( HasLineOfSightToPlayerIgnoringGlobes() )
    {
        m_bReadyToShootGhost = false;

        SpawnPosition = Pawn.Location;
        SpawnPosition.Z += PositionOffsetAbovePlayerToSpawn;

        //Play windup particle
        windupFx = ParticleSystem'KM_Ghost.Particles.KM_P_GhostWindUp';
        m_windupEmitter = WorldInfo.MyEmitterPool.SpawnEmitter( windupFx, SpawnPosition,,,Self );

        //Fire ghost after windup complete
        SetTimer(WindUpTime,false,'FireGhostAtPlayer');
    }
}

function FireGhostAtPlayer()
{
    local Vector        AimDirection;
    local Vector        SpawnPosition;

    SpawnPosition = Pawn.Location;
    SpawnPosition.Z += PositionOffsetAbovePlayerToSpawn;
    m_spawnedGhostProjectile = Spawn(class'KM_GhostProjectile',,, SpawnPosition, Pawn.Rotation );

    if ( m_spawnedGhostProjectile != None )
    {
        //Aim ghost projectile towards player, init, and apply settings
        AimDirection = Normal( GetEnemy().Location - Pawn.Location );
        m_spawnedGhostProjectile.Init( AimDirection );
        m_spawnedGhostProjectile.SeekTarget = GetEnemy();
        m_spawnedGhostProjectile.Damage = GhostDamageToPlayerOnTouch;
        m_spawnedGhostProjectile.Speed = GhostSpeed;
        m_spawnedGhostProjectile.MaxSpeed = GhostMaxSpeed;
        m_spawnedGhostProjectile.AccelRate = GhostAccelerationRate;

        //Play launch sound
        KM_KravenManorGame( WorldInfo.Game ).SoundManager.PlaySoundAtActor( KM_SOUND_ENEMIES_STATUE_GHOSTLAUNCH, self );

        //Assign travel and impact sounds to projectile
        m_spawnedGhostProjectile.AmbientSound = KM_KravenManorGame( WorldInfo.Game ).SoundManager.GetSoundCue( KM_SOUND_ENEMIES_STATUE_GHOSTTRAVEL );
        m_spawnedGhostProjectile.ExplosionSound = KM_KravenManorGame( WorldInfo.Game ).SoundManager.GetSoundCue( KM_SOUND_ENEMIES_STATUE_GHOSTIMPACT );
        m_bGhostInFlight = true;
        m_spawnedGhostProjectile.SCSpawner = Self;

        //Stop windup emitter
        WorldInfo.MyEmitterPool.DetachComponent( m_windupEmitter );
    }
}

function bool IsInFlashLightBeam()
{
    local KM_PlayerController pc;

    pc = KM_PlayerController( GetEnemy().Controller );

    if( pc != None )
        return pc.IsInFlashLightBeam( Pawn );
}

function SetGhostIsInFlight( const bool isInFlight )
{
    if( m_bGhostInFlight )
    {
        m_bGhostInFlight = isInFlight;
        SetTimer(SecondsToWaitBeforeFiring,false,'SetFireGhostReady');
    }
}

function ToggleDebug()
{
    m_bDebug = !m_bDebug;
}


function private SetAttackReady()
{
    m_bReadyToAttack = true;
}

function HandleDestroyed()
{
    local KM_PlayerController pc;

    //Stop attacking the player and make sure they are released
    pc = KM_PlayerController( GetEnemy().Controller );
    if( pc != none )
    {
        pc.StatueRelease();
    }
    IsFrozen = true;

    GotoState('FredIdle');

    //Death delay so designers can sync up kismet
    SetTimer( DeathDelay, false, 'KillFred' );
}

function KillFred()
{
    //Destroy emitters
    WorldInfo.MyEmitterPool.DetachComponent( m_windupEmitter );
    m_windupEmitter = None;

    Pawn.Destroy();
}

function HandleBeingStuck()
{
    local Vector teleportLoc, leftPawnFacing;
    local Vector leftLoc, rightLoc, forwardLoc;

    //Attempt to reposition to sides if clear and get better path
    m_bStuck = false;

    ///Statue facing is vect( 1.0, 0.0, 0.0 ) >> Pawn.Rotation;
    leftPawnFacing = vect(0.0,1.0,0.0)>>Pawn.Rotation;
    leftLoc = Pawn.Location + ( leftPawnFacing * m_stuckCheckDistance );
    rightLoc = Pawn.Location + ( -leftPawnFacing * m_stuckCheckDistance );
    forwardLoc = Pawn.Location + ( (vect(1.0,0.0,0.0)>>Pawn.Rotation) * m_stuckCheckDistance );

    if( m_bDebug )
    {
        DrawDebugLine(Pawn.Location,leftLoc,0,255,0,true);
        DrawDebugSphere(leftLoc,16,20,0,255,0,true);

        DrawDebugLine(Pawn.Location,rightLoc,0,255,0,true);
        DrawDebugSphere(rightLoc,16,20,0,255,0,true);

        DrawDebugLine(Pawn.Location,forwardLoc,0,255,0,true);
        DrawDebugSphere(forwardLoc,16,20,0,255,0,true);
    }

    if( CanReachDestination( forwardLoc ) )
        teleportLoc = forwardLoc;
    else if( CanReachDestination( leftLoc ) )
        teleportLoc = leftLoc;
    else if( CanReachDestination( rightLoc ) )
        teleportLoc = rightLoc;


    Pawn.SetLocation( teleportLoc );
}

//////////////////////////////////////////////////////////////////////////////////////////////////
// States
//////////////////////////////////////////////////////////////////////////////////////////////////

auto state FredIdle
{
    function BeginState( Name PreviousStateName )
    {
        local KM_FredPawn fredPawn;

        if( m_bDebug ) `Log( self @ "begin state "@GetStateName()@" from " @ PreviousStateName );

        fredPawn = KM_FredPawn( Pawn );
        if( fredPawn != None )
        {
            if( GetEnemy() != None && !GetEnemy().bIsBeingAttacked )
                fredPawn.SwitchToState( KM_STATUE_IDLE );
        }

        KM_KravenManorGame( WorldInfo.Game ).SoundManager.StopSound( KM_SOUND_ENEMIES_STATUE_MOVEMENT );

        StopLatentExecution();
        StopMovement();
    }

    function Tick( float DeltaTime )
    {
        if( GetEnemy() == None )
            SetEnemy( GetEnemyWithinDetectRadius() );

        if( !IsFrozen && !GetEnemy().bIsBeingAttacked && m_bReadyToAttack )
        {
            Focus = GetEnemy();
            GotoState('FredChase');
        }
    }

    function EndState( Name NewStateName )
    {
        if( m_bDebug ) `Log( self @ "end state "@GetStateName()@" going to state " @ NewStateName );
    }
}

state FredFireGhost
{
    function BeginState( Name PreviousStateName )
    {
        local KM_FredPawn fredPawn;

        if( m_bDebug ) `Log( self @ "begin state "@GetStateName()@" from " @ PreviousStateName );

        fredPawn = KM_FredPawn( Pawn );
        if( fredPawn != None )
        {
            if( GetEnemy() != None && !GetEnemy().bIsBeingAttacked )
                fredPawn.SwitchToState( KM_STATUE_HOVER );
        }
        StopLatentExecution();
        StopMovement();
        Focus = GetEnemy();
    }

    function Tick( float DeltaTime )
    {
        if( IsFrozen )
            GotoState('FredIdle');

        Focus = GetEnemy();
        AttemptFireGhostAtPlayer();

        if( !IsInFlashLightBeam() )
            GotoState('FredIdle');
    }

    function EndState( Name NewStateName )
    {
        if( m_bDebug ) `Log( self @ "end state "@GetStateName()@" going to state " @ NewStateName );
    }
}

state FredAttack
{
    function BeginState( Name PreviousStateName )
    {
        local KM_FredPawn fredPawn;

        if( m_bDebug ) `Log( self @ "begin state "@GetStateName()@" from " @ PreviousStateName );

        fredPawn = KM_FredPawn( Pawn );
        if( fredPawn != None )
        {
            if( GetEnemy() != None && !GetEnemy().bIsBeingAttacked )
                fredPawn.SwitchToState( KM_STATUE_GRAB );
        }
        StopLatentExecution();
        StopMovement();
        Focus = GetEnemy();
    }

    function Tick( float DeltaTime )
    {
        local KM_PlayerController pc;

        if( IsFrozen )
            GotoState('FredIdle');

        if( !IsWithinAttackRangeOfEnemy() )
            GotoState('FredIdle');

        //Make sure not behind something before attacking
        if( CanReachDestination( GetEnemy().Location ) )
        {
            pc = KM_PlayerController( GetEnemy().Controller );
            if( pc != none && !GetEnemy().bIsBeingAttacked )
            {
                Focus = GetEnemy();
                m_bReadyToAttack = false;
                pc.StatueGrab( DamageToPlayerPerTick );
                SetTimer(AttackCoolDownSeconds,false,'SetAttackReady');
                GotoState('FredIdle');
            }
        }
    }

    function EndState( Name NewStateName )
    {
        if( m_bDebug ) `Log( self @ "end state "@GetStateName()@" going to state " @ NewStateName );
    }
}

state FredChase
{
    ignores SeePlayer;

    function BeginState( Name PreviousStateName )
    {
        local KM_FredPawn fredPawn;

        if( m_bDebug ) `Log( self @ "begin state "@GetStateName()@" from " @ PreviousStateName );

        fredPawn = KM_FredPawn( Pawn );

        if( fredPawn != None )
        {
            if( GetEnemy() != None  && !GetEnemy().bIsBeingAttacked)
                fredPawn.SwitchToState( 1 );
        }
    }

    function Tick( float DeltaTime )
    {
        KM_KravenManorGame( WorldInfo.Game ).SoundManager.PlaySoundAtActor( KM_SOUND_ENEMIES_FRED_MOVEMENT, self );

        Focus = GetEnemy();

        if( IsFrozen )
            GotoState('FredIdle');

        if( IsWithinAttackRangeOfEnemy() && m_bReadyToAttack )
            GotoState('FredAttack');

        //Check if we can fire ghost at enemy
        if( IsInFlashLightBeam() && HasLineOfSightToPlayerIgnoringGlobes() )
            GotoState('FredFireGhost');
    }

    function EndState( Name NewStateName )
    {
        if( m_bDebug ) `Log( self @ "end state "@GetStateName()@" going to state " @ NewStateName );
    }

    event MoveUnreachable(vector AttemptedDest, Actor AttemptedTarget)
    {
        `Log( "MoveUnreachable" );
    }

    function bool FindNavMeshPath()
    {
        // Clear constraints
        NavigationHandle.PathConstraintList = none;
        NavigationHandle.PathGoalList = none;

        // Create constraints
        class'NavMeshPath_Toward'.static.TowardGoal( NavigationHandle,GetEnemy() );
        class'NavMeshGoal_At'.static.AtActor( NavigationHandle, GetEnemy(), AttackRange * 0.4 );
        class'NavMeshPath_EnforceTwoWayEdges'.static.EnforceTwoWayEdges( NavigationHandle );

        // Find path
        return NavigationHandle.FindPath();
    }

Begin:
    // If the pawn is not walking, then wait until it does
    if( Pawn.Physics != PHYS_Walking )
    {
        Sleep(0.1);
        Goto('Begin');
    }
    //Check if directly reachable
    if( NavigationHandle.ActorReachable( GetEnemy() ) )
    {
        if( m_bDebug )
            FlushPersistentDebugLines();

        //Direct move
        MoveToward( GetEnemy(), GetEnemy() );
        m_locationLastFrame = Pawn.Location;

    }
    //Otherwise compute path
    else if( FindNavMeshPath() )
    {
        NavigationHandle.SetFinalDestination(GetEnemy().Location);

        if( m_bDebug ) //Draw debug pathing
        {
            FlushPersistentDebugLines();
            NavigationHandle.DrawPathCache(,TRUE);
        }

        // move to the first node on the path
        if( NavigationHandle.GetNextMoveLocation( m_nextDestination, Pawn.GetCollisionRadius()) )
        {
            if( m_bDebug )
            {
                DrawDebugLine(Pawn.Location,m_nextDestination,255,0,0,true);
                DrawDebugSphere(m_nextDestination,16,20,255,0,0,true);
            }

            MoveTo( m_nextDestination, GetEnemy() );
            m_locationLastFrame = m_nextDestination;
        }
    }
    else //Stuck - attempt to recover
    {
        if( !m_bStuck )
        {
            SetTimer(m_timeToSpendRecoveringWhileStuck,false,'HandleBeingStuck');
            m_bStuck = true;
        }

        //Failed to recover from being stuck - stand perfectly still... like a statue
        //We'll get a better path once player moves.
        GotoState('FredIdle');
    }

    goto 'Begin';
}

//////////////////////////////////////////////////////////////////////////////////////////////////
// Private Events / Functions
//////////////////////////////////////////////////////////////////////////////////////////////////


DefaultProperties
{
    IsFrozen = false
    DamageToPlayerPerTick = 1.0
    AttackRange = 90.0
    PlayerDetectionRadius = 1200.0
    AttackAfterTeleportCoolDown = 160
    TriggerTeleportAfterNumLooks = 5
    m_bStatueEnabled = true
    m_bGhostInFlight = false
    GhostDamageToPlayerOnTouch = 200
    m_bDebug = false;
    SecondsToWaitBeforeFiring = 1.0
    SecondsToFlickerFlashLight = 0.5
    SecondsToKeepFlashLightOff = 0.5
    m_bReadyToShootGhost = true
    m_bReadyToAttack = true
    PositionOffsetAbovePlayerToSpawn = 160.0
    AttackCoolDownSeconds=5.0
    WindUpTime=1.5
    GhostSpeed=200.0
    GhostMaxSpeed=400.0
    GhostAccelerationRate=600.0
    m_timeToSpendRecoveringWhileStuck=6.0
    m_bStuck=false
    m_stuckCheckDistance=80.0
    DeathDelay=2.5
    m_distanceToTeleportSq = 0.0
}
